Hot sealing hot cutting T-shirt Bag Making Machine
Quick Detail:
a. LDPE.HDPE hot sealing hot cutting t-shirt bag making.
b. automatic controlled by the computer (or touch screen) completely
c. Two/one sealing knifves.one photocell.
d.. providing the highest production speed and output.
e. Equipped the multi auto alarms with automatic stop design.
Description:
This machine is High Speed two lines T-shirt Bag Making Machine applied to manufacturing and printing the uncolored vest bags made of HDPE, LDPE roll film. It is automatically controlled by the computer completely. The user can optional it by the touch panel (PLC)
It is Operated by the computer monitor, it will stop the machine immediately whenever any abnormality occurs. The abnormal codes and solutions will be displayed on the touch panel. It helps to reduce the confusion of repair.
The plastic roll of this unwinder is driven by inverter motor, and it can automatically change the feeding speed based on the machine's speed requirement. This is suitable for the high speed production machine,
double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, It is of high degree of automation and good economic result.
Applications:
- HDPE .LDPE T-shirt bag
- Shopping bag with handle
- garbage bag with handle
Specifications :
|
Model
|
DFR-500
|
DFR600
|
DFR700
|
|
Width of bag-making(mm)
|
30-450
|
30-550
|
30-650
|
|
Length of bag-making(mm)
|
10-999
|
10-999
|
10-999
|
|
Speed of bag-making(pc/min)
|
150
|
150
|
150×2
|
|
Power of motor(kw)
|
1.1
|
1.1
|
1.5
|
|
Power of electric-thermal(kw)
|
1.6
|
1.6
|
2
|
|
Weight(kg)
|
750
|
800
|
1000
|
|
Outline dimension(L×W×H)mm
|
2900×1200×1550
|
2900×1350×1650
|
2900×1450×1700
|
Competitive Advantage:
a. The twenty seven years experence to manufacture this machine
b. More 30 years professional engineers service in many countries,
C. Machines with quality guarantee for one year, life long maintenance.
D. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new
products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
G. High speed,hige stable full automatic completely process lines
Product Tags:
|
|

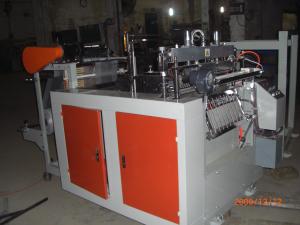

Auto T-shirt Bag Making Machine Images
|
