ASY-B6600-61000 6 colors rotogravure printing machine for plastic film and paper (CE)
Quick Detail:
- Plastic bag printing machine
- With double oven dryer
- Cast iron frame
With inverter
- High speed 50m/min
Description:
a. The latest improved gear box, 360° non-stopping registration device.
b. Movable type doctor blade, transverse reciprocating motion.
c. Far infrared heating tube drying system can keep dry at a speed of 60m/min.
d. Unwinding and traction adopts magnetic powder brake to make material moving more stable.
e. Rewinding and traction adopt magnetic powder clutch to make color register accurate and rolling end face more neat and smooth.
f. Current output type temperature control system makes heating quicker and electricity saving.
g. Turnover double-station unwinding and rewinding mechanism, receiving and replacing material without stopping the machine.
h. Obverse and reverse side once-through continuous printing.
i. Double-oven drying system and large plate device can print the pattern with 1200mm in girth
Applications:
This machine is suitable for printing roll plastic film, non-woven cloth, thin leather, paper, aluminum foil, cloth and various soft packages with excellent performance and it is a kind of ideal printing equipment for wine box, shoe bag, milk film and vest bag.
Specifications:
|
Model
|
|
ASY-B-6600
|
|
ASY-B-6800
|
|
ASY-B-61000
|
|
|
Effective Printing Width(mm)
|
|
600
|
|
800
|
|
1000
|
|
|
Max. Width of Web(mm)
|
|
620
|
|
820
|
|
1020
|
|
|
Max. Printing Speed(m/min)
|
|
0~60
|
|
10~60
|
|
10~60
|
|
|
Max.Diameterof Unwind/Rewind(mm)
|
|
600
|
|
600m
|
|
600
|
|
|
Diameter of Printing Cylinder(mm)
|
|
70~390
|
|
70~390
|
|
70~390
|
|
|
Accuracy of Registration(mm)
|
|
±0.2
|
|
±0.2
|
|
±0.2
|
|
|
Heating Power of Oven(kw)
|
|
21.6
|
|
28.8
|
|
36
|
|
|
Total Power(kw)
|
|
29.2
|
|
36.6
|
|
44
|
|
|
Weight of Machine(kg)
|
|
6500
|
|
7000
|
|
7500
|
|
|
Overall Dimension(mm)
|
|
8100*1900*2400
|
|
8100*2100*2400
|
|
8100*2300*2400
|
|
Competitive Advantage:
a. The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
Product Tags:
|
|

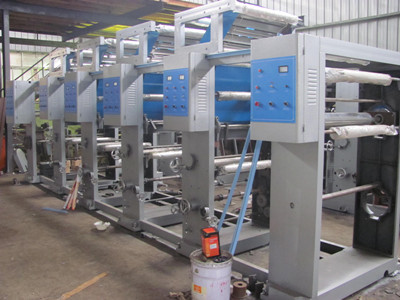

HDPE Bag Gravure Printing Machine Images
|
