Quick Detail:
a. whole sets of using computer control, the electrical motors in English (available matching servo electrical control system).
b. compared set long, long step ... tracking, accurate, stable, threw an automatic parking
c. (Step) Servo motor, easy to adjust the bag length and the production speed.
d. automatic synchronization of double-sided tape, the automatic numbering.
e. Automatically stop when film feeding blocks or bags jam.and can be set automatically count count warning.
f. High efficiency, save manpower and time.
g. Equipped with side sealing hot cutting device.
h. For flat bag, PP bag. socks bags, towels bags, bread bags
Description:
This machine is suitable for heat-sealing and heat-cutting such materials as Bopp, OPP, PE, thermal contracting films and other print and non-print plastic sheet is to produce socks bags, towels bags, bread bags, ornaments bags ideal equipment
Applications:
- pe.pp bread bag, towels bag, pen bag, socks bag ornaments bag
- food packaging:cakes,candies,roasted seeds and nuts,
- biscuits, milk powder, salt,tea, etc.;
- bacteria bags,convenient bags,storage bags;
- woven inner bag
Specifications :
| Model | RQL-600 | RQL-700 | RQL-800 | RQL-1000 |
| Width of sealing & cutting | 999mm | 999mm | 999mm | 999mm |
| Length of sealing & cutting | 580mm | 680mm | 780mm | 980mm |
| Speed of bag-making | 40-240pc/min | 40-240pc/min | 40-240pc/min | 40-240pc/min |
| Power of motor | 3kw | 5kw | 7kw | 10kw |
| Weight | 700kg | 850kg | 850kg | 950kg |
| Outline dimension(LXWXH) | 3600X1200X1700mm | 3600X1300X1700mm | 3600X1400X1700mm | 3600X1600X1700mm |
Competitive Advantage:
a.The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d.Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
Product Tags:
|
|

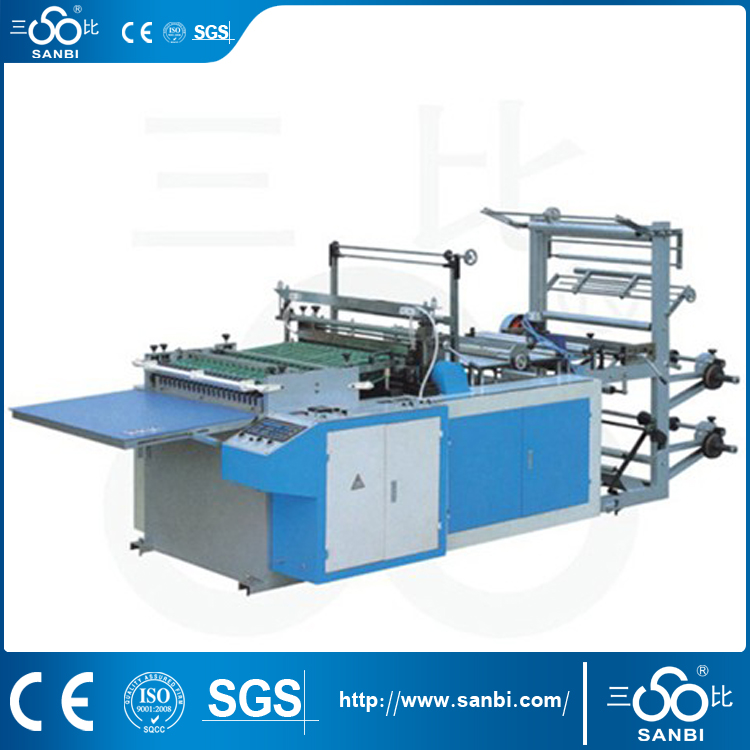

Side Sealing Hot Cutting Plastic Bag Making Machine For Shopping Bag Images
|
