Two Lines Heat Sealing Heat Cutting T-Shirt Bag Making Machine With Punching
Quick Detail:
a. LDPE.HDPE hot sealing hot cutting t - shirt bag making.
b. automatic controlled by the computer (or touch screen) completely
c. Two sealing knifves. Two photocell. Two auto punching cylinders.two step motor (servo motor )and driv er .
d. Two inveter motor driven system in unwind unit and it can automatically change the feeding speed
based on the machine's speed requirement.
e. providing the highest production speed and output.
F. Equipped the auto alarms with automatic stop design.
g The whole pile of bags has the "Rocking System", which would not make the 2 pcs of bags sealing
stick together.
Description:
1.This machine is High Speed two lines T-shirt Bag Making Machine applied to make the colored vest bags of HDPE, LDPE film. It is automatically controlled by the touch screen completely.
2. It is operated by the touch screen , it will stop the machine immediately whenever any abnormality occurs. The abnormal codes and solutions will be displayed on the touch panel. It helps to reduce the confusion of repair.
3. The plastic roll film of this unwinder is driven by inverter motor, and it can automatically change the feeding speed based on the machine's speed requirement. This is suitable for the high speed production machine,
4. double servo(step) motor fixed length and the liquid crystal touch screen actual display to finish the feeding, sealing, cutting, It is of high degree of automation and good economic result.
Applications:
- HDPE .LDPE T-shirt bag
- Shopping bag with handle
- garbage bag with handle
Specifications :
| Model | DFHQ-450X2 |
| Max. rubble roll width | 450mmX2 |
| Max. effective width of bag | 400 mm x 2 |
| Max.Bag-making length | 650mm |
| Bag-making thickness | 0.01-0.10mm |
| Bag-making speed | 140-180 pcs/minX2 |
| Air pressure | 5 kg/cm2 |
| Photocell | 2pcs |
| Unwinder motor controller | 2 pcs with inverter motor |
| Total Power | 9kw |
| Weight of machine | 1600kg |
| Overall dimensions | 6000X1600X1600mm(L X W X H) |
Competitive Advantage:
a. The twenty-seven years experence to manufacture this machine
b. More 30 years professional engineers service in many countries,
C. Machines with quality guarantee for one year, life-long maintenance.
D. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new
products etc
e. Professional development group continuously improves and upgrades new products and new technolog ies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
g. High speed,hige stable full automatic completely process lines

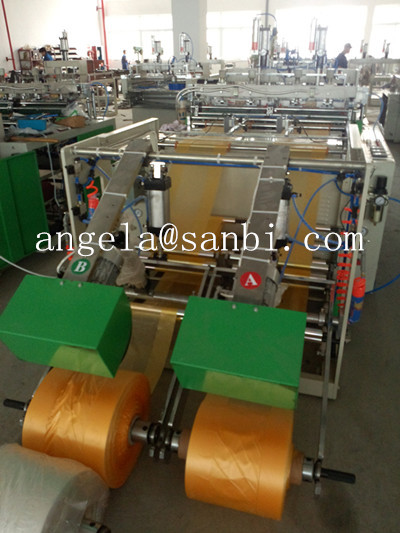

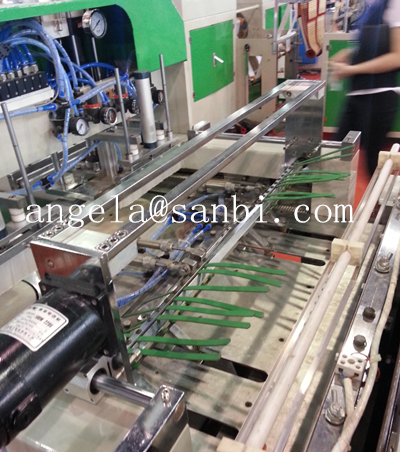

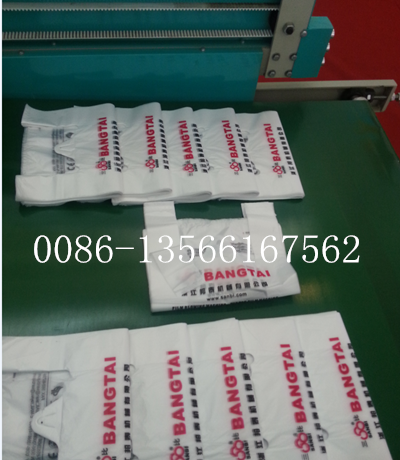

Picture:
