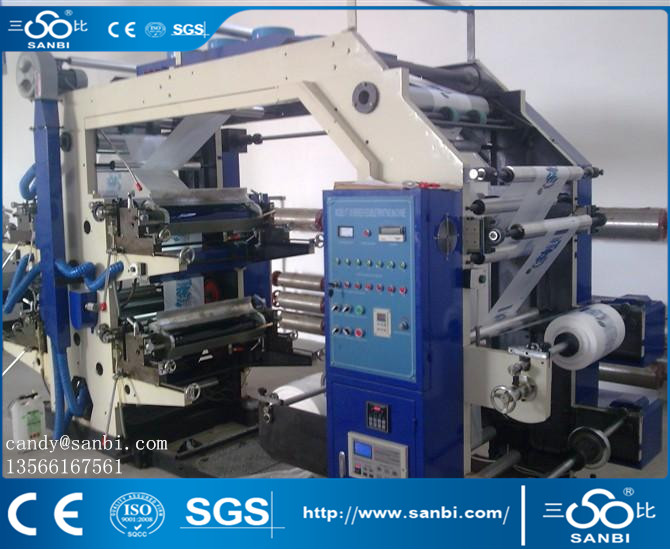

YT-4800 Four-Color Flexographic Printing Machine
Product Description
Application: Introduce sensitization resin as flexible printing plate, suitable for printing
Such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
Supermarket handbag, vest bag and clothes bag, etc.
Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360 continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Technical Parameter:
| Model | YT-4800 |
| Max. Width of Printing Material(mm) | 800 |
| Max. Printing Width(mm) | 760 |
| Length Range of Printed Product(mm) | 191-914 |
| Max. Diameter of Roll Material(mm) | Φ450 |
| Printing Speed(m/min) | 5～50 |
| Thickness of plate(Including Two-sides Glue Paper)(mm) | 2.38 |
| Total Power | 12.5 |
| Weight(kg) | 3500 |
| Overall Dimension(mm) | 4200*1800*2400 |
Optional Device:
1. Unwind and Rewind use automatic tension control: 1000USD*2=2000USD
2. Unwind with automatic deviation correction system(EPC):1100USD
3. Cylinder can stand up with plate: 200USD*4color=800USD
4. Our machine had equipped 40cm roller for you. If you need another roller for printing, need 2.5 USD/CM.
SPARE PARTS
| 01 | inner hexagonal spanner | 1set |
| 02 | Cross screwdriver | 1pc |
| 03 | a-liner screwdriver | 1pc |
| 04 | Screws | 15pcs |
| 05 | Scissors | 1pc |
| 16 | operation instruction book | 1pc |
